Follow the three-step impression guide below, then complete the form to place your order. We'll be in touch within one business day.

The Fitting Process

Three steps to a perfect impression.

01

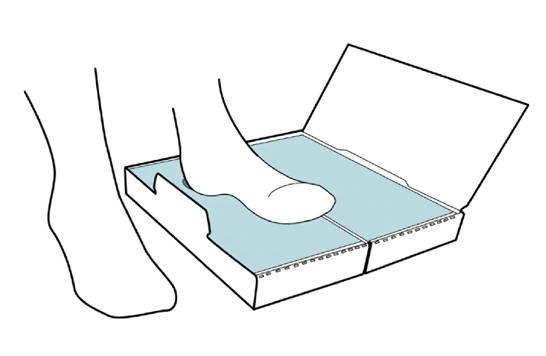

Step 1 — position the foot on impression foam

Position the Foot

Patient seated with knee at 90° directly above the ankle. Place the heel on the impression foam, centred. Grasp the anterior ankle to stabilise the STJ, then apply downward pressure on the knee to push the heel to full depth.

02

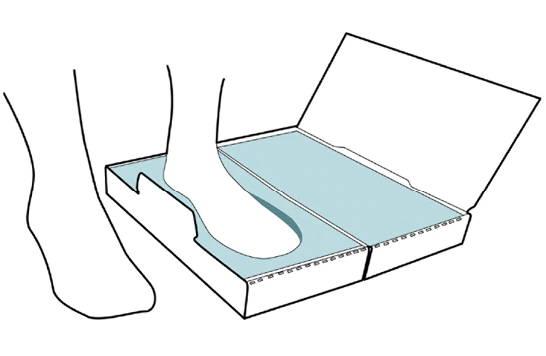

Step 2 — roll foot laterally to capture the arch

Capture the Arch

Roll the foot laterally toward the 5th metatarsal head, then the 2nd, then the 1st — pushing each to full foam depth. Plantar-flex all toes individually, starting from the 5th toe through to the 1st.

03

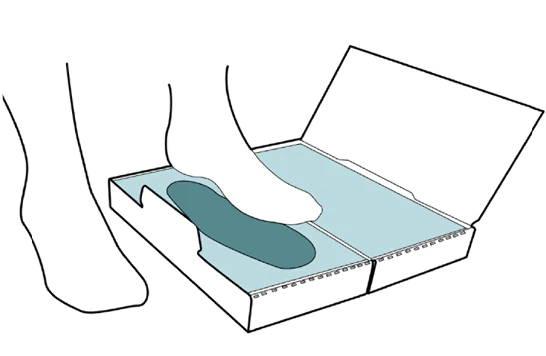

Step 3 — lift foot and inspect the impression

Lift & Inspect

Grasp the ankle to stabilise the STJ and lift the foot in its neutral position, starting from the heel. Inspect both impressions for level medial and lateral edges at the same height.

Please include a tracing of the patient's current insole for correct sizing.

Work Order Form

Place Your Order

Complete all required fields marked with *. Orders are typically processed within one business day.

Order Received!

Thank you — we'll review your work order and be in touch within one business day.
Questions? Call us at (250) 361-6616.

Practitioner Information
Required
Required
Valid email required
 —
Billing Address
Device Type
Device Shell Materials
Device Shell Adjustments
Device Posting
Cast Modifications
Additions
Forefoot Cushion Extension
Heel To Toe
Top Covers * required
Required
Required
Special Instructions & Checklist
